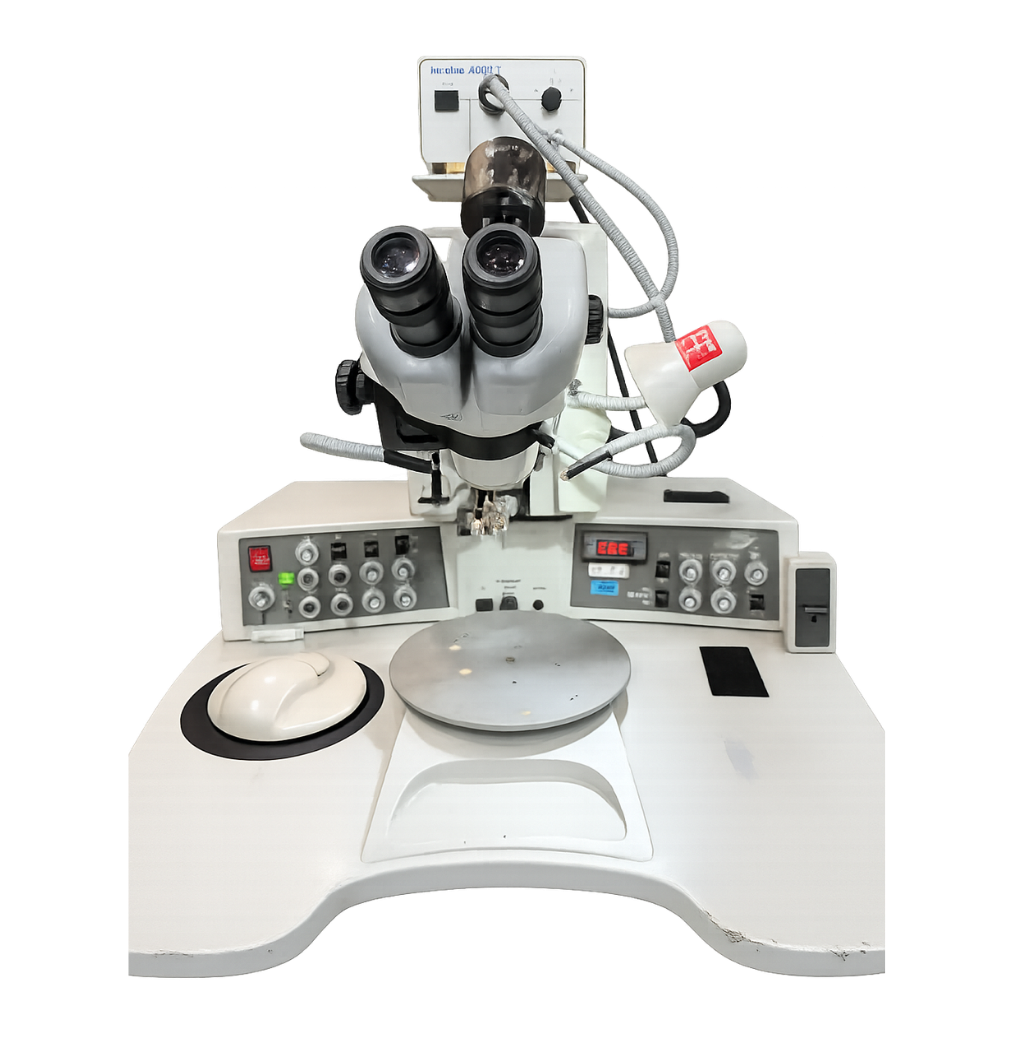

K&S 4526 Auto-Stepback Wedge Bonder
A manual/semi-automatic wedge bonder, rebuilt and fully supported by SunSemi.
The K&S 4526 Auto-Stepback Wedge Bonder is a manual/semi-automatic wedge bonder designed for aluminum wire, gold wire, and ribbon bonding applications where wire length and loop formation require tight control. With individual bond parameter control, programmable loop formation, a large bonding area, and support for a wide variety of wires, the 4526 is well suited for demanding microwave, hybrid/MCM, chip-on-board, and discrete device applications.
Its deep-access bonding head option and real-time tail adjustment system make it especially useful for deep-cavity microwave work where consistent tail length is critical.
Representative Photos
Front bond head / wire spool / tool area
Side view of feed and bonding mechanism
Left control panel
Right control panel / stepback controls
Model badge photo
Manual Wedge Bonder With Vertical Feed Capability
The K&S 4526 is a manual wedge bonder that combines vertical feed wire delivery with semi-automatic bonding, making it a strong choice for applications that require precision access and higher throughput than a fully manual machine can provide. It handles aluminum and gold wire across hybrid, defense, aerospace, and microelectronics production environments with consistent results.
Every machine is rebuilt by Sunshine Semiconductor to deliver stable, reliable performance, including a refurbished warranty. Optional installation, setup, and operator training are available to help ensure long-term productivity.
Backed by decades of K&S experience, Sunshine Semiconductor also provides preventive maintenance, field service, and ongoing technical support, giving customers dependable service throughout the machine’s lifecycle.
Download the official K&S 4526 Manufacturer Brochure
Request Current Rebuild Pricing and Availability
Refurbished and Supported Manual Wire Bonders
Every refurbished manual wire bonder we sell is a complete working system, not just a machine that powers on.
Sunshine Semiconductor applies 45+ years of wire bonder support experience to every machine sale. Machine packages include refurbished warranty and are supported with options of installation, setup, and operator training. We maintain a robust inventory of legacy parts to keep your wire bonding operation running smoothly, without hunting for hard-to-find sources.
Not sure what you need? Contact SunSemi to discuss your application, and we will help you identify the right machine for your operation.
- Rebuilt K&S 4500 Series wire bonders
- Warranty coverage
- Robust legacy parts inventory
- Installation, setup, and operator training available
- Premium maintenance and support packages available
