K&S 4523 Wedge Bonder
A versatile manual wedge bonder, rebuilt and fully supported by SunSemi.
The K&S 4523 Wedge Bonder is a versatile manual/semi-automatic wedge bonder designed for aluminum wire, gold wire, and ribbon bonding applications. Its large bonding area, individual control of bond parameters, loop height, and force make it suitable for work ranging from simple discrete devices to hybrid, MCM, microwave, chip-on-board, and deep-cavity applications.
With its deep-access bonding head option and real-time tail adjustment capability, the 4523 is especially well suited for applications where access, consistency, and tight tail-length control are important.
Representative Photos

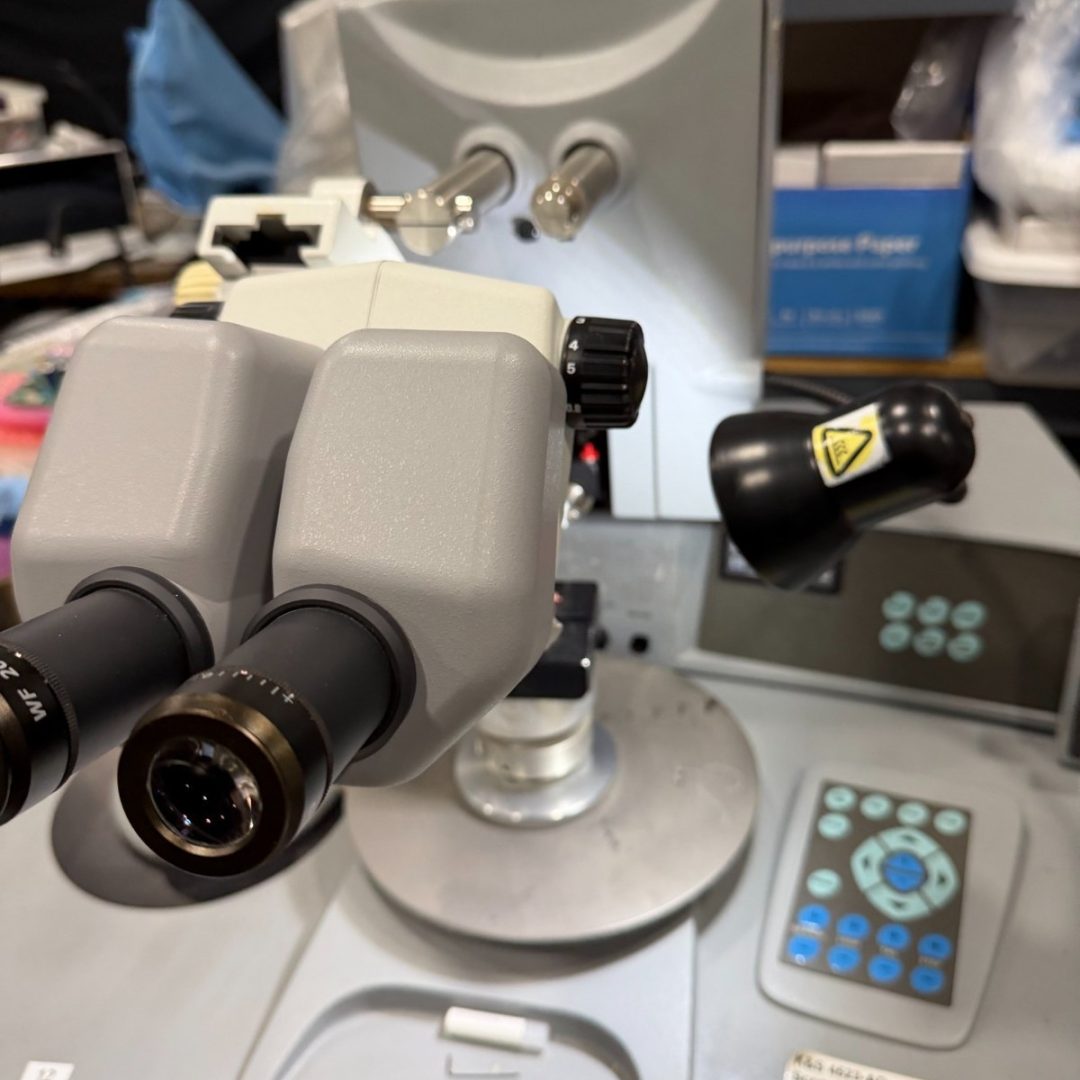

Overall machine / operator-view photo

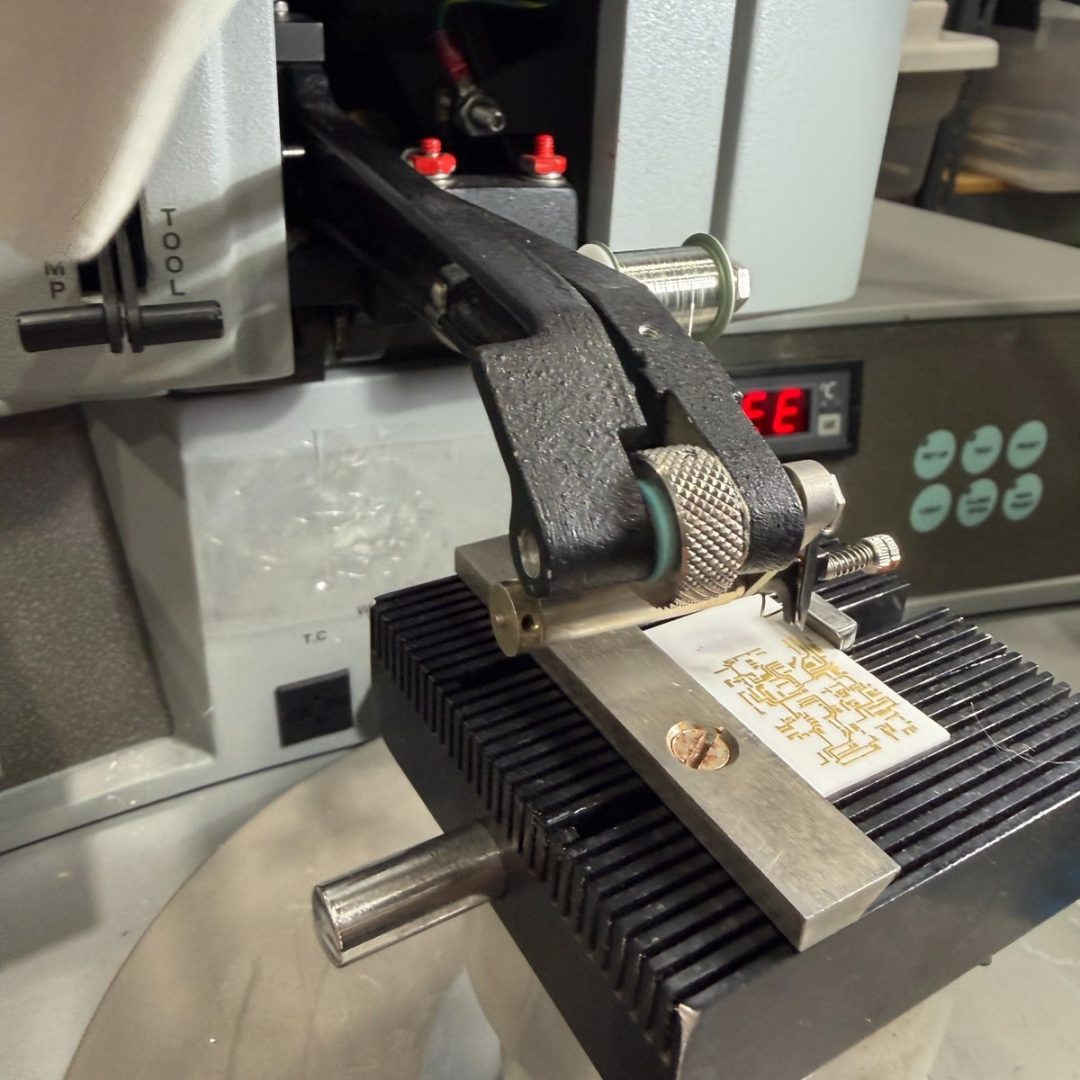

Workholder and wedge bonding application photo

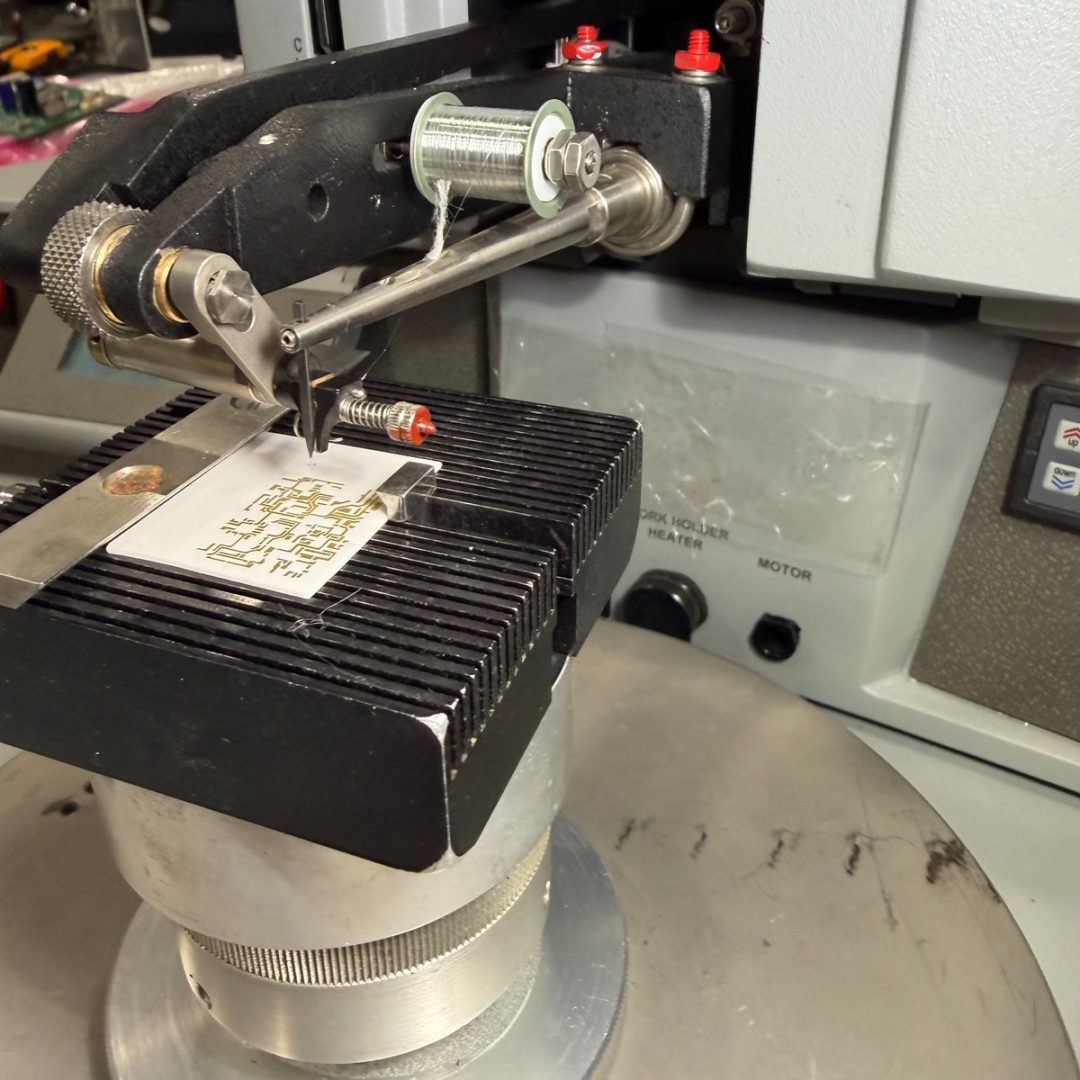

Alternate bonding-area view

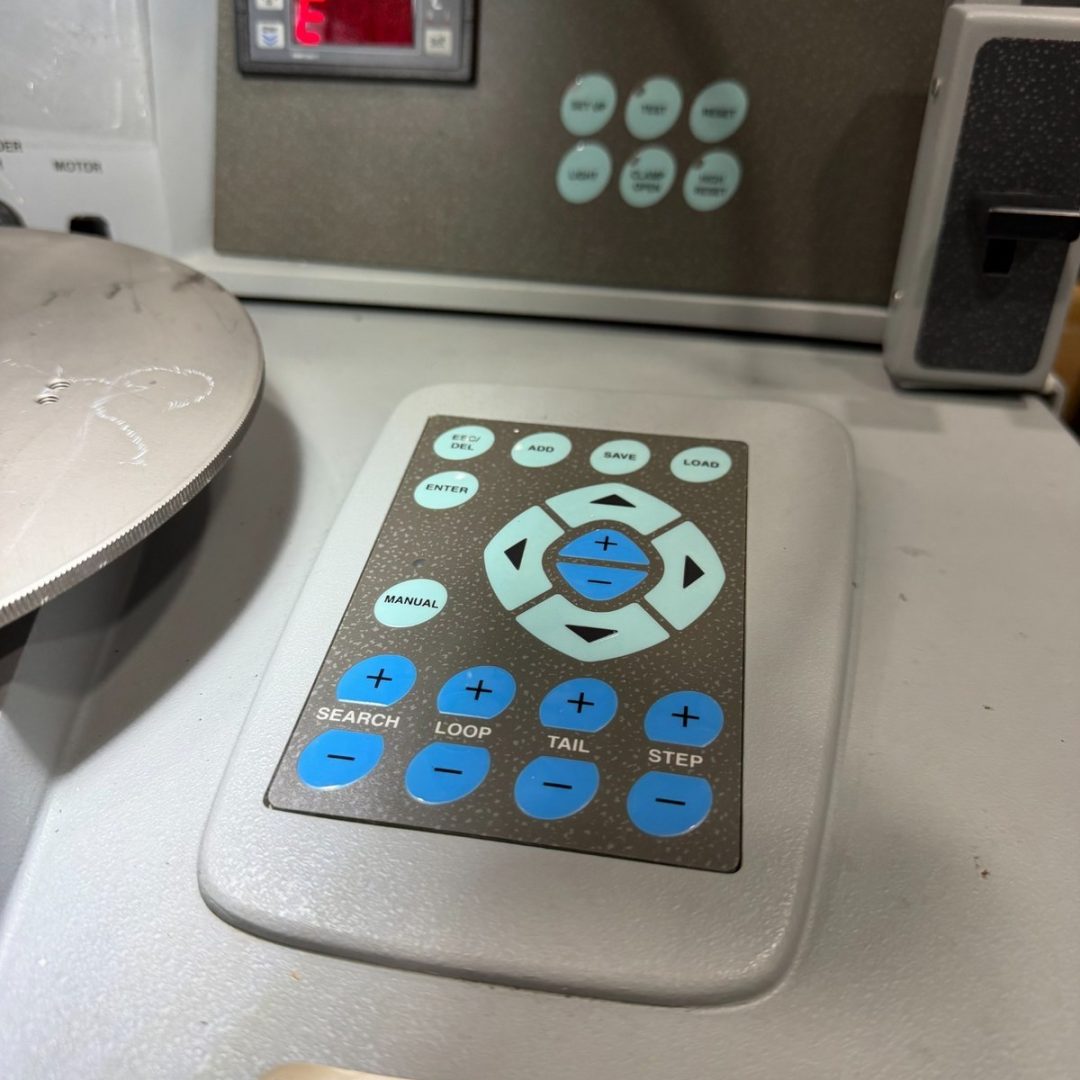

Digital keypad and model-label context

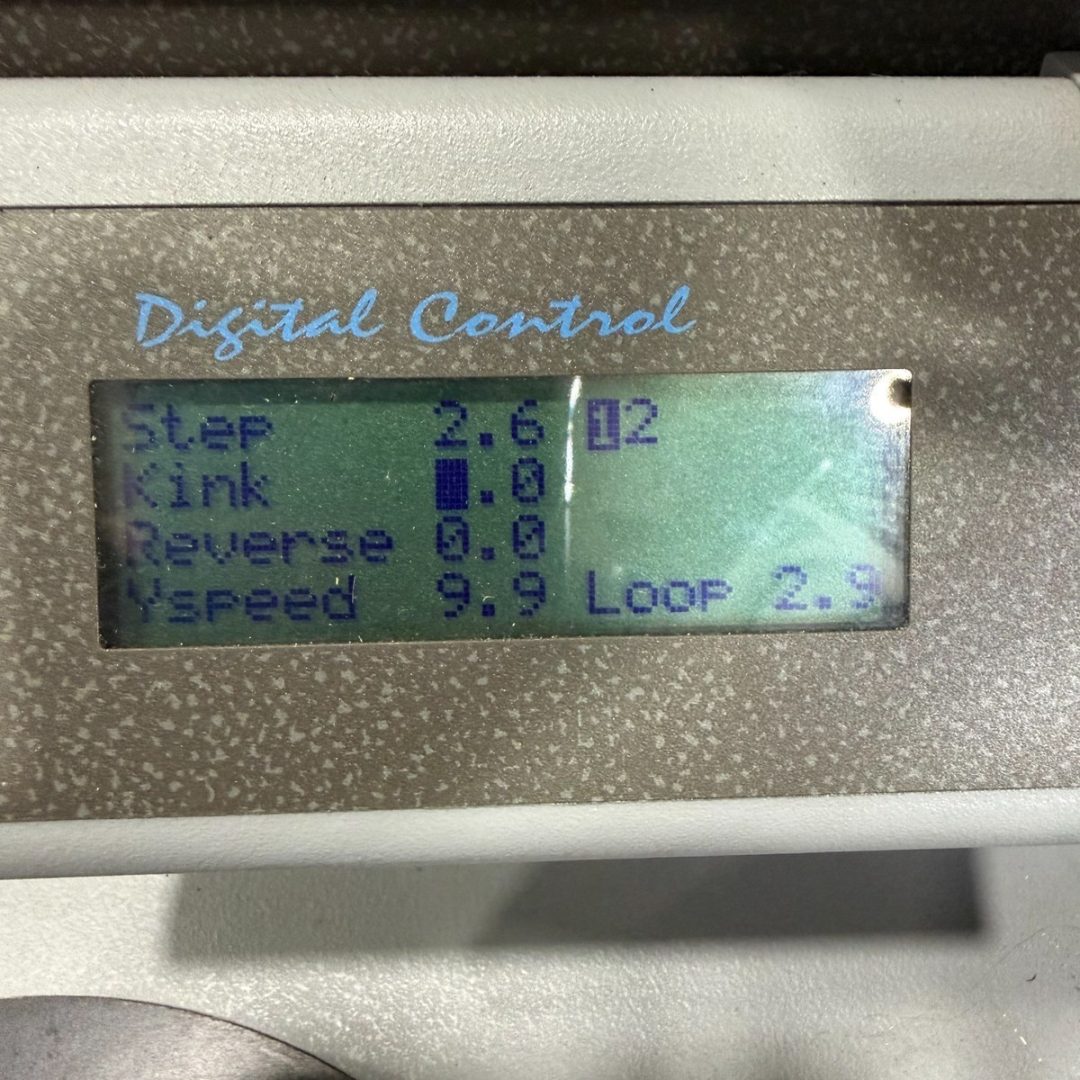

Digital control display close-up
Manual Wedge Bonder With Versatile Access Options
The K&S 4523 stands apart from other manual wedge bonders by offering both standard and deep-access bonding in a single machine. This flexibility makes it well-suited for complex hybrid assemblies, RF and microwave components, and other applications where reach and precision are equally critical to bonding success.
Every machine is rebuilt by Sunshine Semiconductor to deliver stable, reliable performance, including a refurbished warranty. Optional installation, setup, and operator training are available to help ensure long-term productivity.
Backed by decades of K&S experience, Sunshine Semiconductor also provides preventive maintenance, field service, and ongoing technical support, giving customers dependable service throughout the machine’s lifecycle.
Download the official K&S 4523 Manufacturer Brochure
Request Current Rebuild Pricing and Availability
Refurbished and Supported Manual Wire Bonders
Every refurbished manual wire bonder we sell is a complete working system, not just a machine that powers on.
Sunshine Semiconductor applies 45+ years of wire bonder support experience to every machine sale. Machine packages include refurbished warranty and are supported with options of installation, setup, and operator training. We maintain a robust inventory of legacy parts to keep your wire bonding operation running smoothly, without hunting for hard-to-find sources.
Not sure what you need? Contact SunSemi to discuss your application, and we will help you identify the right machine for your operation.
- Rebuilt K&S 4500 Series wire bonders
- Warranty coverage
- Robust legacy parts inventory
- Installation, setup, and operator training available
- Premium maintenance and support packages available
